Spec:
Mount F/R: Reinforced rubber / Reinforced rubber
Rate F/R(kgf/mm): 6.0 / 5.0
Free length F/R: 180 / 185
Spring F/R: ID62 straight spring / Barrel or Taper type exclusive spring
Height adjustment range F/R: -50 to 0 / -55 to -30
*The range is when adjusting the height on the lower bracket side. *Adjustment range may change due to grade, vehicle weight... etc. *Even within the range, it may interfere with the inner fender and others. Also, please check the minimum ground clearance and set the height.
Rear damping dial Position & Shape: C *Refer to the 5th image for the position and shape. The image is representative model.
Extension dial with the product: -
Stabilizer link with the product F/R: x / x
BRAIN connection: x

For MAZDA3 FASTBACK SEDAN, BP5P BP8P BPFP, P5-VPS S8-DPTS PE-VPS engine, MY 05/2019 -
Remarks: For 2WD, Rear damping force dial locates in wheel well.
For MAZDA3 FASTBACK 4WD, BP8P, S8-DPTS engine, MY 05/2019 -

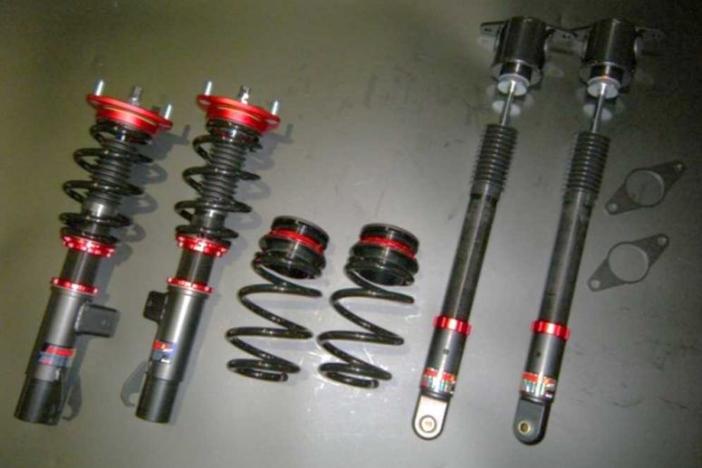

BLITZ DAMPER ZZ-R features:
- Single cylinder type (monotube) structure. The entire length adjustable suspension kit.
- Reasonable price.
- 32 levels damping force adjustment mechanism was adopted, it allows a wide range damping force adjustment. For all driving scene from the street use to car racing.
- Aluminum upper mount, lock seat, the bracket (except some models) achieve both high strength and light weight.
- φ44 diameter piston of the single-cylinder type suppress damping force lag.(except for some models)

For more info, Click here　to check BLITZ HP

Note:
- It is possible malfunctions some devises with radar, camera, sensor etc. by installing DAMPER ZZ - R series. It is also possible that malfunctions such as safety equipment, collision avoidance support equipment, driving assistance equipment of each car manufacturer may occur.
- When installing the DAMPER ZZ-R series, especially in the case of the strut type suspension, the shock absorber may interfere with even genuine wheels and tires.
