Spec:
Mount F/R: Reinforced rubber / Reinforced rubber
Rate F/R(kgf/mm): 4.0 / 4.0
Free length F/R: 220 / 240
Spring F/R: ID62 straight spring / Barrel or Taper type exclusive spring
Height adjustment range F/R: -58 to 0 / -47 to 0(NRE210H ZWE211H MY06/2016-10/2019), -80 to 0 / -80 to -25(NRE214H MY06/2016-10/2019), -55 to 0 / -50 to 0(NRE210H ZWE211H MY10/2019- ), -80 to 0 / -80 to -25(NRE214H MY10/2019 - )
*The range is when adjusting the height on the lower bracket side. *Adjustment range may change due to grade, vehicle weight... etc. *Even within the range, it may interfere with the inner fender and others. Also, please check the minimum ground clearance and set the height.

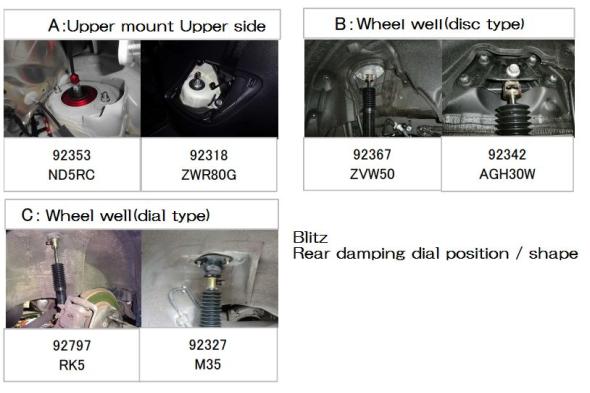

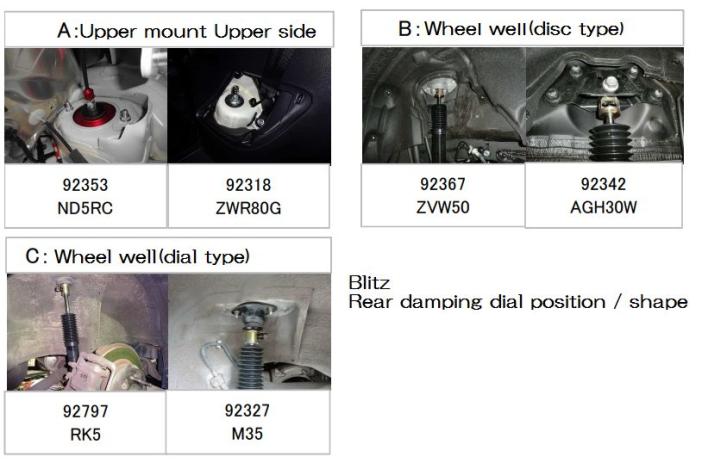

Rear damping dial Position & Shape: B *Refer to the 5th image for the position and shape. The image is representative model.
Extension dial with the product: x
Stabilizer link with the product F/R: FF / x
BRAIN connection: x

For Corolla, NRE210 ZRE212 ZWE211,
8NR-FTS 2ZR-FAE 2ZR-FXE engine, MY 10/2018 -
For Corolla Sport, NRE210H NRE214H ZWE211H, 8NR-FTS 2ZR-FXE engine, MY 10/2019 -
For Corolla Touring, NRE210W ZRE212W ZWE211W, 8NR-FTS 2ZR-FAE 2ZR-FXE engine, MY 10/2019 -

Remarks: To adjust front damping force, drilling iron panel is required. Rear damping dial is located in wheel house.

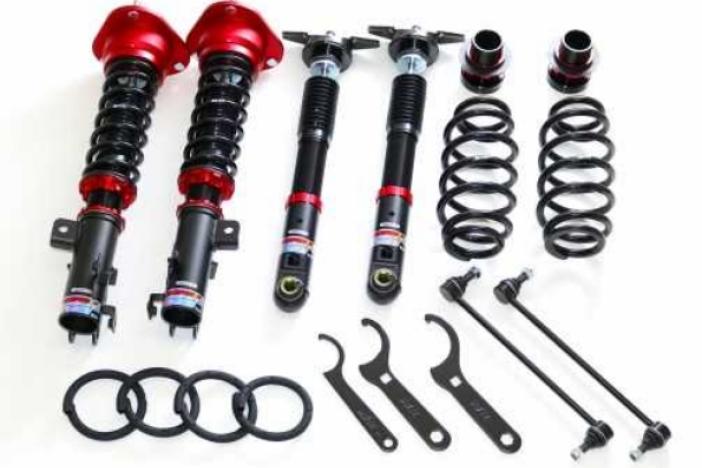

BLITZ DAMPER ZZ-R features:
- Single cylinder type (monotube) structure. The entire length adjustable suspension kit.
- Reasonable price.
- 32 levels damping force adjustment mechanism was adopted, it allows a wide range damping force adjustment. For all driving scene from the street use to car racing.
- Aluminum upper mount, lock seat, the bracket (except some models) achieve both high strength and light weight.
- φ44 diameter piston of the single-cylinder type suppress damping force lag.(except for some models)

For more info, Click here　to check BLITZ HP

Note:
- It is possible malfunctions some devises with radar, camera, sensor etc. by installing DAMPER ZZ - R series. It is also possible that malfunctions such as safety equipment, collision avoidance support equipment, driving assistance equipment of each car manufacturer may occur.
- When installing the DAMPER ZZ-R series, especially in the case of the strut type suspension, the shock absorber may interfere with even genuine wheels and tires.
