Home > result > 135-333-029

  • BLITZ
  • BIG CALIPER KIT II STREET FRONT SET (86103)
  • (Japanparts No :

    135-333-029

    )

 Click on the image above to enlarge

  • 228,800 JPY  (
    Convert

    Home Currency Selection

    Select your home currency from the list below.
    Then click on "Set Home Currency" button to set your home currency.

    )
  • You save 43,472JPY
  • 185,328 JPY  (
    Convert

    Home Currency Selection

    Select your home currency from the list below.
    Then click on "Set Home Currency" button to set your home currency.

    )
  • Quantity :

add to Wish List

item is added to Wish List

already added to Wish List

Member page Login

Please input your Email address and password.

Email address
Password
Estimated delivery time by EMS/Courier
14-21 days
  • Car category
  • Toyota

    • VOXY ZRR/ZWR8#
      Esquire ZRR/ZWR8#
      NOAH WR/RR8#

  • Compatible with:
  • VOXY ZRR/ZWR8#, Esquire ZRR/ZWR8#, NOAH WR/RR8#
  • Product
    Details
  • Ask about
    Product
  • Ratings and
    Review

Brake

 >

Rotors/ Calipers

Product Information

Spec:

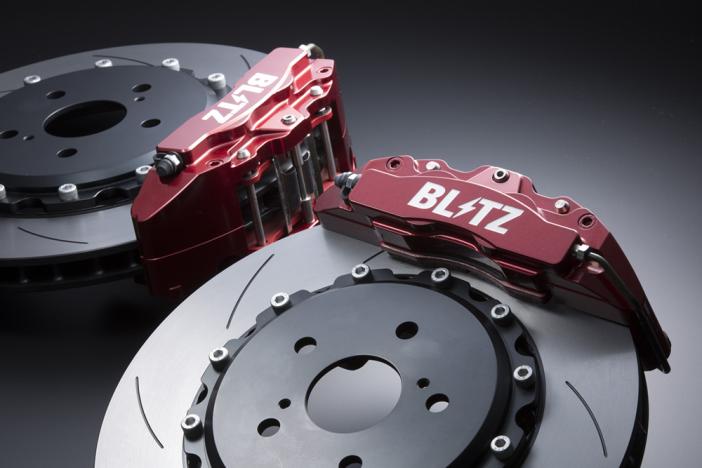

Caliper: Aluminum forged 4POT in metallic red
Disc: φ355 / 1pc, with slit
Pad: Non-asbestos ceramic composite, Rotor proper temperature range 0-450°C, Average friction coefficient 0.40 to 0.47µ
Hose: Includes exclusive stainless steel mesh Teflon brake hose. A cover is attached to the mesh hose and socket joint, and the dynamic stress on the caulked part is reduced and the durability is greatly improved. In addition, the fixing of the middle part of the hose also uses a exclusive metal fitting, which enables reliable attachment.

VOXY 2014/01- ZRR80G,ZRR85G,ZRR80W,ZRR85W 3ZR-FAE
VOXY 2014/02- ZWR80G,ZWR80W 2ZR-FXE
VOXY G´s 2016/04- ZRR80W 3ZR-FAE
ESQUIRE 2014/10- ZRR80G,ZRR85G 3ZR-FAE
ESQUIRE 2014/10- ZWR80G 2ZR-FXE
NOAH 2014/01- ZRR80G,ZRR85G,ZRR80W,ZRR85W 3ZR-FAE
NOAH 2014/02- ZWR80G,ZWR80W 2ZR-FXE
NOAH G´s 2016/04- ZRR80W 3ZR-FAE

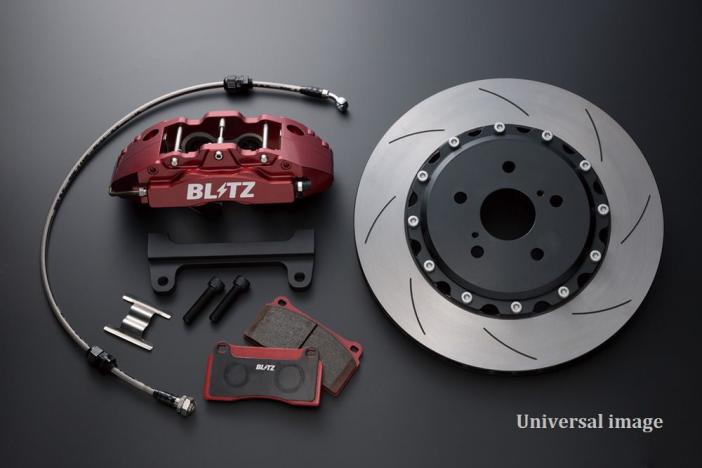

Remarks:This kit contains all the parts needed for installation, but does not contain chemicals such as brake fluid and brake grease.
- By installing this kit, you can not attach a genuine wheel. Please verify in advance whether the clearance of the wheel to be attached can be secured in advance.
- Processing of the back plate is required. Although the processing method is free, please be careful not to deform the remaining part or leave a piece in the vehicle.
- The front center bell housing is anodized (some models only). Alumite may peel off or fade away due to continuous high temperature conditions caused by circuit driving etc. Please note that there is no impact on performance.
- Due to the nature of the pad when it is cold or when the brake pad is wet, brake noise may occur, but this is not a malfunction.

BLITZ BIG CALIPER KIT II Features:
- New designed brake caliper kit by exclusive model for further high braking ability and controllability.
- High-level "lightweight" and "high rigidity" by forging.
- Slit rotors realize high "heat dissipation". The fade phenomenon is suppressed and the braking force of the pad is kept in the optimum condition.
- Includes exclusive stainless steel mesh teflon brake hose.
- A bright metallic red calipers and black bell housings.
- Two types are available.
    1) For street use, low-dust, quieter and reduced rotor aggression.
    2) For racing use, superior in initial braking and enables higher braking power. The racing use has realized about 7% more braking power than the street use.
