- BLITZ
- TURBO SYSTEM 86/BRZ STARTUP KIT (10201)
- (Japanparts No :
135-058-003
)
Click on the image above to enlarge
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 28-35 days
- Car category
Toyota
-
TOYOTA86/ FR-S 2016-
TOYOTA86/ FR-S -2016
-
TOYOTA86/ FR-S 2016-
- Compatible with:
- ZN6, 6MT ealier and later model and 6AT ealier model
- Product
Details - Ask about
Product - Ratings and
Review
Engine
>Turbo kit & Supercharger
- Product Information
-

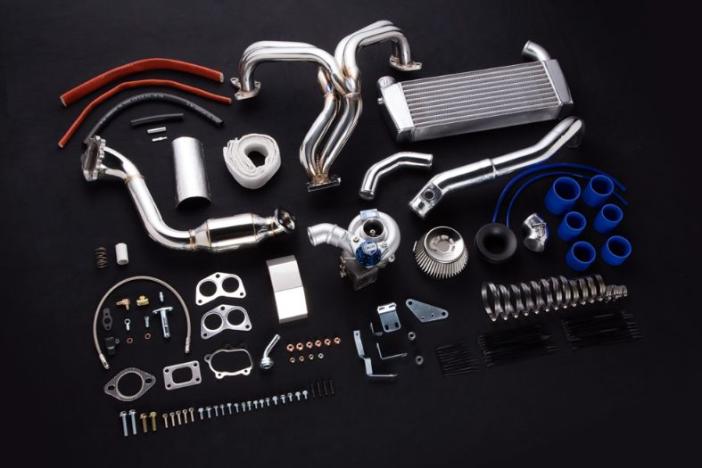

STARTUP KIT
B06-380R turbine: ○
SUS POWER AIR CLEANER: ○
Exclusive intercooler kit: ○
Exclusive exhaust manihold: ○
Exclusive down pipe: ○
Catalyzer: with down pipe
ECU: ○
Boost Controller: X

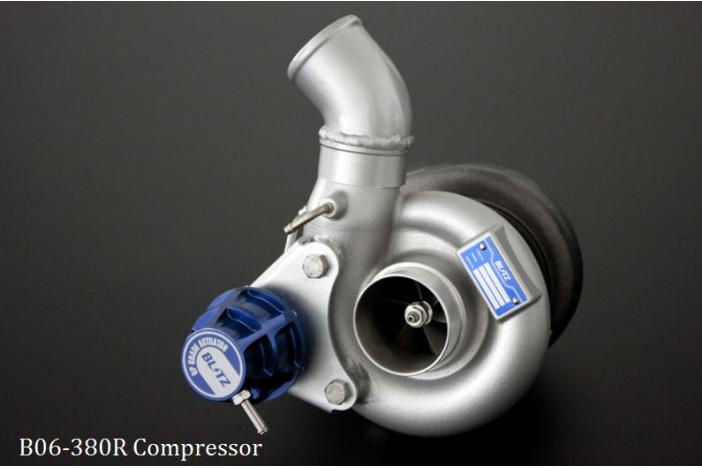

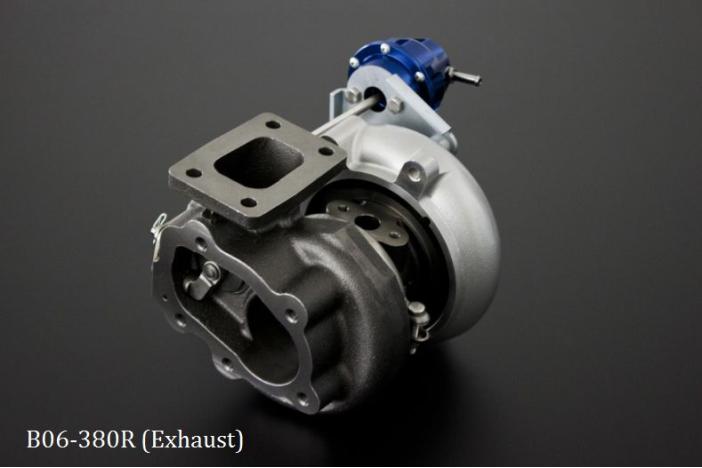

B06-380R turbine spec:
Max.hp: 380PS
Compressor Wheel: trim- 60.7, In Dia(mm)- 53, Ex. Dia(mm)- 68
Turbine Wheel: trim- 76.6, In Dia(mm)- 56, Ex. Dia(mm)- 49
For Toyota 86, ZN6, FA20 engine, 6MT Zenki(ealier model) and Koki(later model), Toyota 86 ZN6 6AT Zenki(ealier model). Not for 6AT Koki(later model).

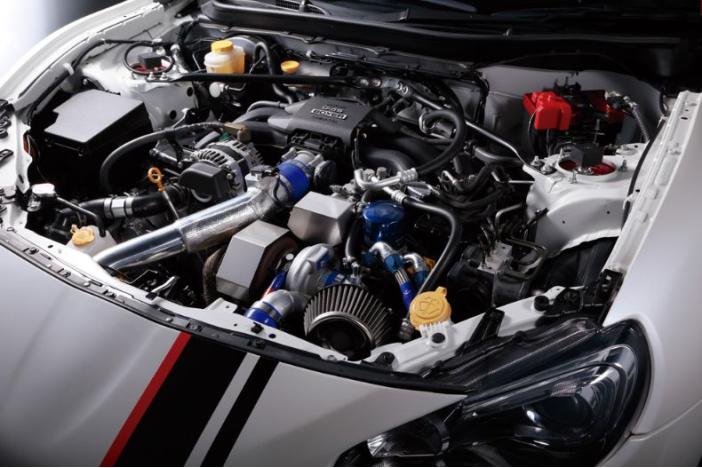

BLITZ TURBO SYSTEM Features:
- Bolt-on turbo system that uses an actuator type metal flow turbine for 86 / BRZ.

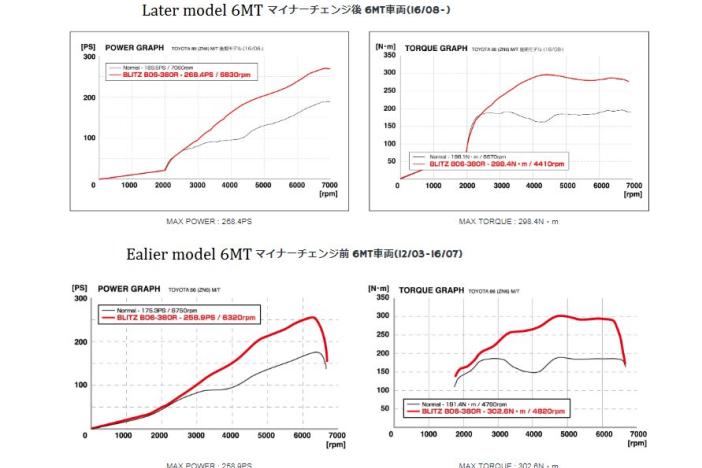

- It generates a maximum output of approximately 260 PS and a maximum torque of approximately 300 N/m, and powerful feeling at the range between low-medium speed to high rev. (* In the case of normal engine and setting by Blitz).
- For a wide use from street to circuit by increasing power and torque by turbo.
- BLITZ original B06-380R turbine use. The compressor housing is specially painted to reduce rust and dirt.- Equipped with turnbuckle original actuator as standard.
Note:
Please install the RACING OIL COOLER KIT RD at the same time provide sufficient cooling to prevent the turbine damage.
