- Cusco
- ADJUSTABLE SWAY BAR LINK (00B 318 A**)
- (Japanparts No :
376-2018-004-1
)
Click on the image above to enlarge
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 10-15 days
- Car category
Toyota
-
TOYOTA86/ FR-S -2016
TOYOTA86/ FR-S 2016-
VOXY ZRR/ZWR8#
Prius ZVW5# 2015-
Vitz P9# <Yaris Liftback>
Vitz P13# <Yaris Liftback>
AQUA NHP10
Alphard H2#
Alphard H3#
VELLFIRE H3#
-
TOYOTA86/ FR-S -2016
- Compatible with:
- Universal Fit
- Product
Details - Ask about
Product - Ratings and
Review
Suspension & Steering
>Control arms & Endlinks
- Product Information
-
Diameter: M12xP1.25

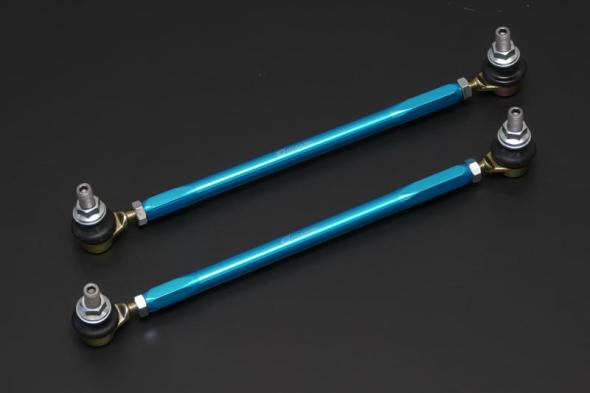

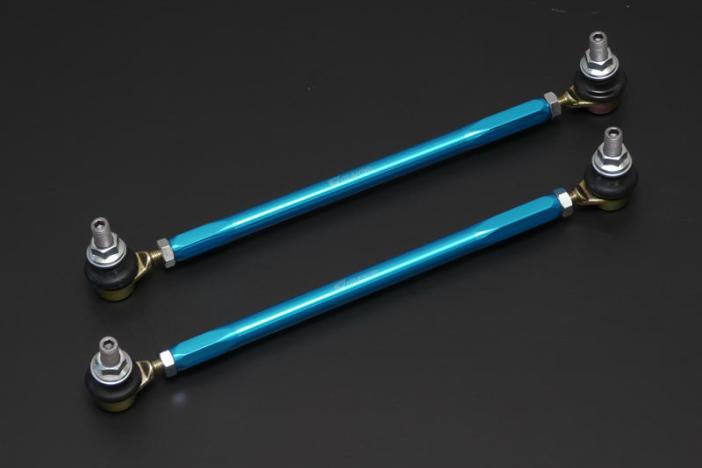

A set of 2pc
Lod length / Adjustable range / Part number / Remarks
1.L=155mm / 225mm-255mm / 00B 318 A22 / Front
2.L=195mm / 265mm-295mm / 00B 318 A26 / Front
3.L=235mm / 305mm-335mm / 00B 318 A30 / Front
4.L=275mm / 345mm-375mm / 00B 318 A34 / Front
!! the max of 4. is 375mm. Compatible link length is up to +15mm compared with OEM.Please be careful in the case of a vehicle that has drastically lowered down.
Remarks: Adjustable range and OEM length is from the center of ball joint bolt to the center.
Note:

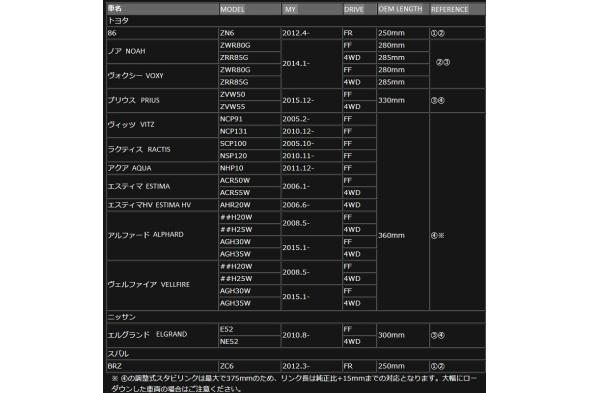

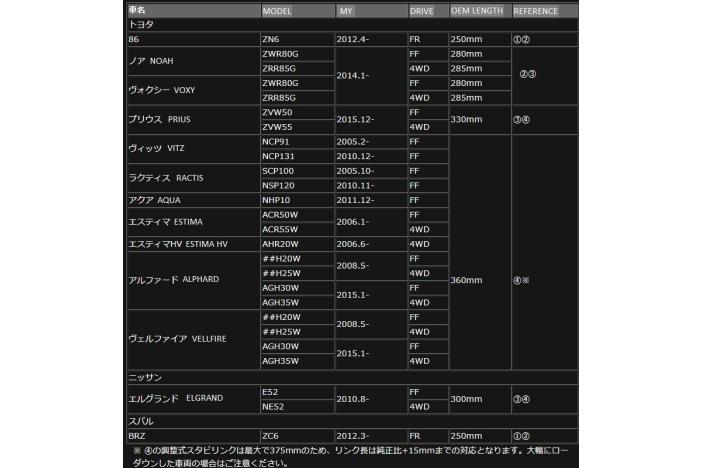

Regarding reference compatibility, it is based on OEM sway bar link length.
There is possiblity of exceeding the adjustment range and interference, etc. due to mounted parts (height controlled device, stabilizer, etc.).
After installing and adjustment this product, be sure to check that there is no interference of each part.
FEATURES OF CUSCO ADJUSTABLE SWAY BAR LINK:

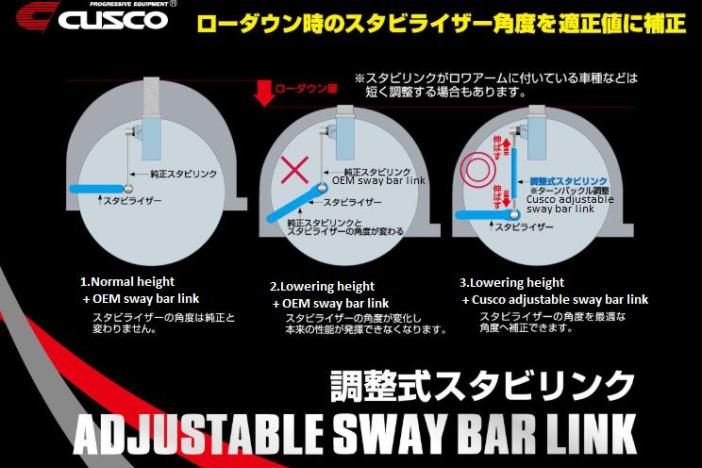

This part can adjust correct mounting angle of stabilizer when lowering height.
High quality adjustable stabilizer link to exert original performance and effect.
-Possible to adjust angle in a millimeter.
-Bolt on type. Just replace OEM sway bar link.
