- HKS
- HIPERMAX S-Style L (80130-AT114)
- (Japanparts No :
281-241-810
)

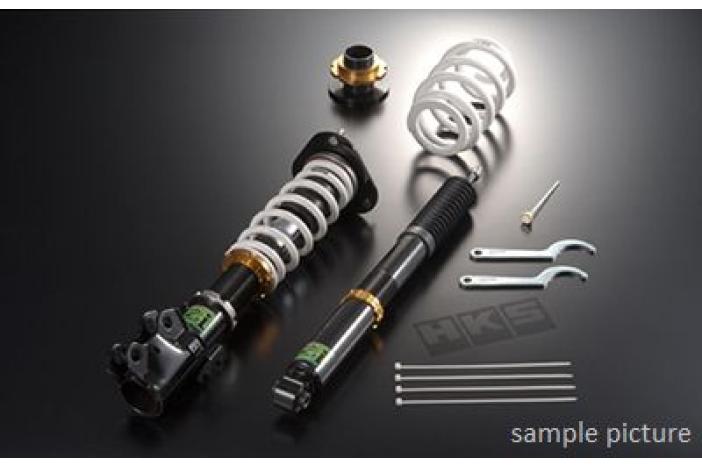

Click on the image above to enlarge
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 14-21 days
- Car category
Lexus
-
NX
-
NX
- Compatible with:
- AGZ10 8AR-FTS MY 07/2014 -
- Product
Details - Ask about
Product - Ratings and
Review
Suspension & Steering
>Coilovers
- Product Information
-
Full Kit Spring Rate F/R (N/mm (kgf/mm)): F=49(5)/R=59(6)
Free Height (F/R mm): 250(Barrel)/220(Barrel)
Damping Force Piston Speed 0.1m/sec Damping Force N (F: Rebound/Compression):402/167
Damping Force Piston Speed 0.1m/sec Damping Force N (R: Rebound/Compression):539/157
Vehicle Height (Highest - Lowest) (FRONT):-31(0 - -68)
Vehicle Height (Highest - Lowest) (REAR):-26(0 - -61)
Remarks: For 2WD.
For NX200t, AGZ10, Engine 8AR-FTS, MY 07/2014 -
Check HKS page for details
Features:
The ultimate all-rounder for the low stance enthusiast.
HKS S-style L was designed to be highly reliable in various uses under any conditions. This new damper is recommended to preserve or improve the ride quality after upgrading tires and/or lowering the vehicle height. The driver can change the ride characteristics at will.
- Single Tube Design
- Dustboots Standard
- PNE Coating
- M-Shaft for 46mm Standard Type
- High Flow Linear Piston
- Strengthened Rubber Upper Mounts
- Aluminum Lock Nut & Ride Height Adjuster
- 30-way Adjustable Damping Force
