- Subaru
- SUBARU HORN (TRIPLE)
- (Japanparts No :
513-009-010
)
Click on the image above to enlarge
- 10,412 JPY ()
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 14-28 days
- Car category
Subaru
-
Legacy 2015-2021 BN/BS A- Liberty
-
Legacy 2015-2021 BN/BS A- Liberty
- Compatible with:
- BS/BN
- Product
Details - Ask about
Product - Ratings and
Review (2)
Interior & Dress up
>Steering wheels & Horns
- Product Information
-

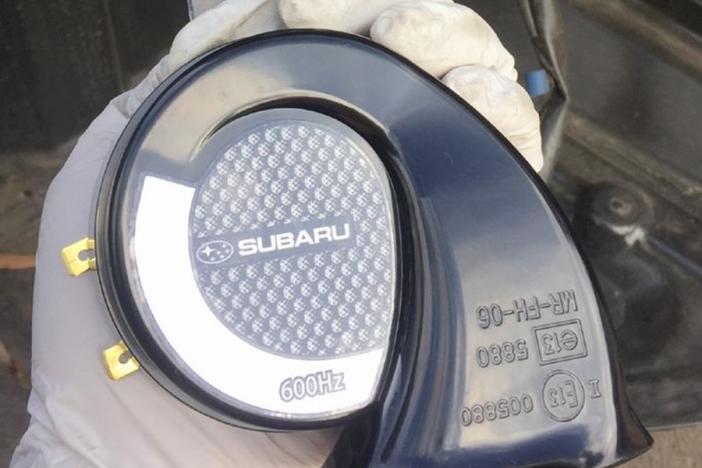

Spiral triple horn of 400/500/600 Hz
- Ask about Product
- Inquiry for 513-009-010
-
Options :
-
Email Address:
-
Email Confirmation:
-
Chassis number/ Model code:
-
body:
Thank you very much for your inquiry.
We will contact you within 3 business days.
If you don't receive any reply from us,
send an inquiry form again
-
-
- Product review
Good quality spiral horn upgrade for BS Outback!
-
- Photo
-
- Installation tips
1. Remove front bumper. Remove several black plastic clips above and below the bumper. Also one inside the wheel well on each side. Remove the headlight washer cap and disconnect the fog light before removing the front bumper.
2. The low tune (600Hz) (right hand side) horn is direct swap, plug and play.
3. Remove the middle horn. Install the supplied L shape horn bracket. Note that the connector on the horn should face downward. Put the two horns to the stud and tighten it with the supplied nut. Plug in the 1-to-2 horn wire.
4. I'm not quite sure what the small bolt and bracket is for so I use them as retainers for the 1-to-2 horn connector wire.
5. Put the sticker to the engine bay fuse box. Now you need a 10A fuse on the left horn. Remove the original one (7.5A) and plug in the supplied one (10A). -
Written by Yuqing (AUSTRALIA) | 2018-03-14
-
-
- Product review
great sound better than OEM supplied horn
-
Written by Raeed (SAUDI ARABIA) | 2017-05-01
