- Subaru

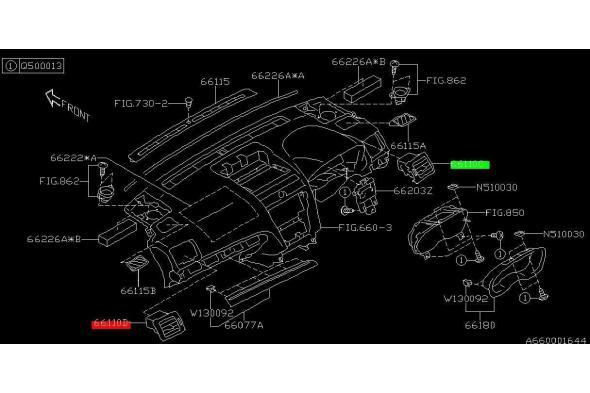

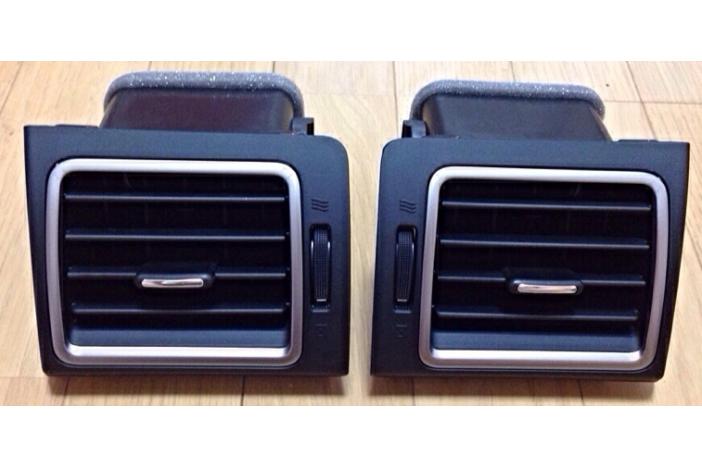

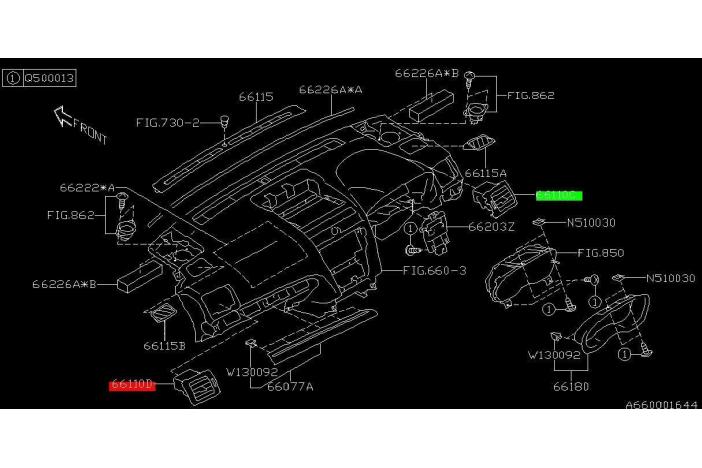

- 66110C + 66110D GRILLE ASSY, VENTILATOR SET
- (Japanparts No :
333-006-012
)
Click on the image above to enlarge
- 7,896 JPY ()
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 10-15 days
- Car category
Subaru
-
LEVORG VM#
WRX S4/ STI VA#
-
LEVORG VM#
- Compatible with:
- VA/ VM
- Product
Details - Ask about
Product - Ratings and
Review (1)
Interior & Dress up
>A/C & Heater parts
- Product Information
-
PAIR.
- Ask about Product
- Inquiry for 333-006-012
-
Options :
-
Email Address:
-
Email Confirmation:
-
Chassis number/ Model code:
-
body:
Thank you very much for your inquiry.
We will contact you within 3 business days.
If you don't receive any reply from us,
send an inquiry form again
-
-
- Product review
Nice refreshing look to my 15' XT, which the vents do not have the surround trim.
-
- Photo
-
- Installation tips
Installation took about 10 mins, and require some trim removal.
- For the driver's side vent, remove side panel by prying it off. Then remove the screw holding the lower panel (where the fuse panel opening located), and then pull it off.
- The vents are being hold by two claws/clips, look at the new one for reference and locate them on the old vents. Push them up and the vents should pop out.
- Once the old one is removed, simply slide the new one in, and put all the panels and the screw back in.
- As for the passenger side, first remove the side panel, then remove the face trim above the glove box. Once removed you will see there's a screw holding the glove box. Remove that.
- Then open the glove box, remove all the screws holding it in place and lower the glove box. (This will make removing the vent much easier)
- Then push on the claws/clips of the old vent to pop it out, and remove it.
- Slide the new one in, put the glove box back in and tighten all screws, and lastly put all the other trim pieces back. -
Written by W (UNITED STATES) | 2019-02-02
